CJPF86/SC-VFD 6/10KV 8.7/15KV 中压变频电力电缆

产品名称：CJPF86/SC-VFD  交联聚乙烯绝缘阻燃船用中压变频电力电缆 3.6/6kV 6/10kV 8.7/15kV 12/20kV 90℃

XLPE Insulated Flame Retardant shipboard Medium Voltage VFD Power Cables 3,6/6KV 6/10K 8.7/15KV 12/20KV 90°

产品用途：交联聚乙烯绝缘低烟无囱船用中压变频电力电缆适用于各种河海船舶及海上石油平台等水上建筑中对屏蔽性能要求严格的动力线路及输配电线路，尤其适用于变频控制传动系统中做供电或连接电缆。

The shipboard medium voltage VFD power cables aresuitable to each kind of river sea ships and the seapetroleum platform and so on in the aquatic constructionand loses the distribution line to the shielding propertiesrequest strict power circuit,especially is suitable in thefrequency conversion control transmission system makesthe power supply or the tie cable.

执行标准：IEC60092-350，IEC60092-354，IEC60092-360，IEEE1580，IEC60228，IEC60332-1-2，IEC60332-3-22，IEC61034，IEC60754，IEC60684-2。

产品标识：厂名、型号、额定电压线芯标记:颜色色标或打印数字。

Product marking:factory name,type,rated voltageCore marking:color marking or printed numbers

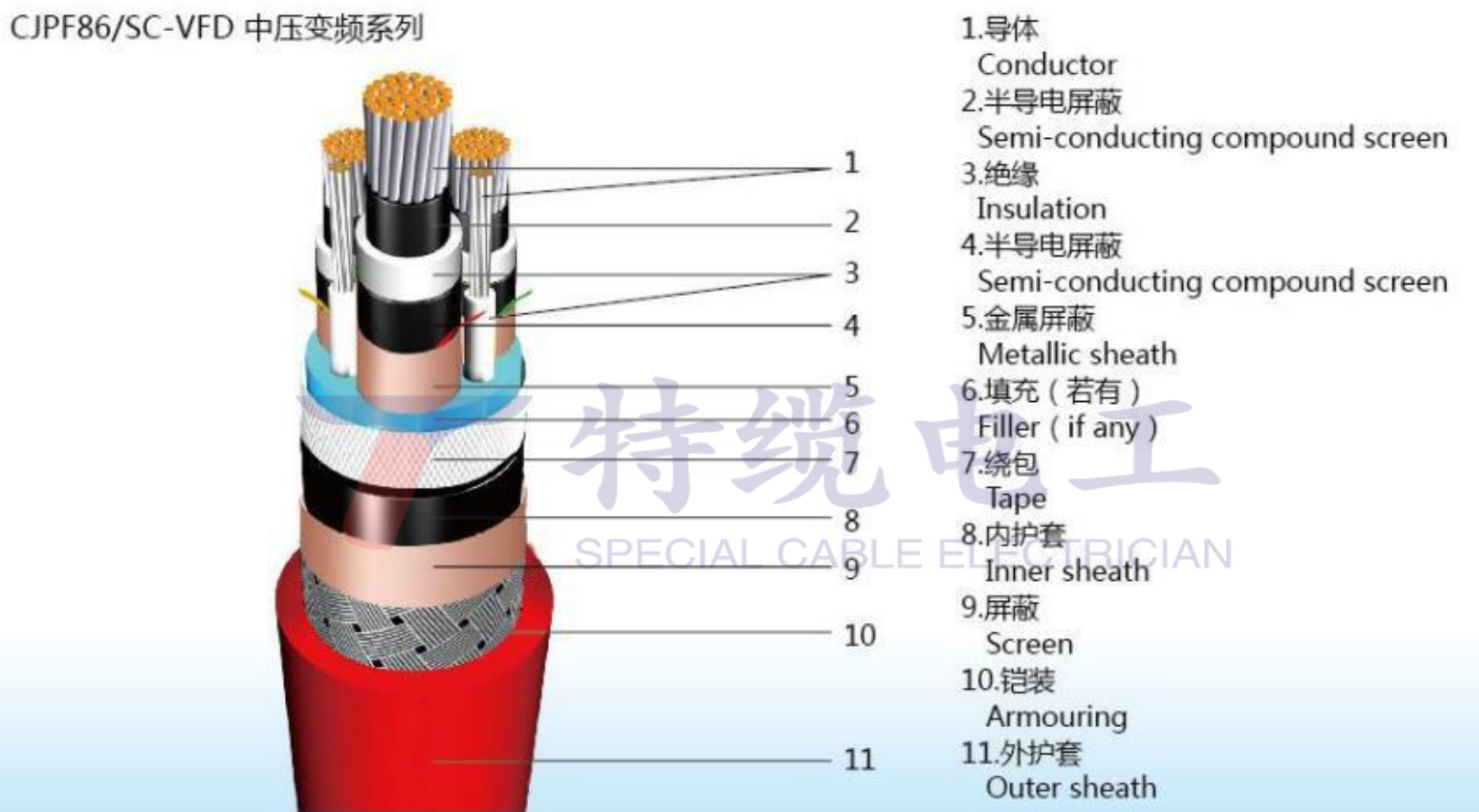

产品结构图 Structure drawing

型号解析

CJPF86/SC-VFD   交联聚乙烯绝缘聚烯烃内护套镀锡铜丝编织铠装聚烯烃外护套低烟无囱阻燃船舶变频器用电力电缆，SC型

                             XLPE insulation polyolefin inner sheath tinned copper wire braided polyolefin outer sheath low-smokehalogen-free flame retardant shipboard VFD power cable,type SC

CJPJ85/SC-VFD   交联聚乙烯绝缘交联聚烯烃内护套镀锡铜丝编织铠装交联聚烯烃外护套低烟无囱阻燃船舶变频器用电力电缆，SC型

                             XLPE insulation cross-linked polyolefin inner sheath tinned copper wire braided cross-linked polyolefinouter sheath low-smoke halogen-free flame retardant shipboard VFD power cable,type SC

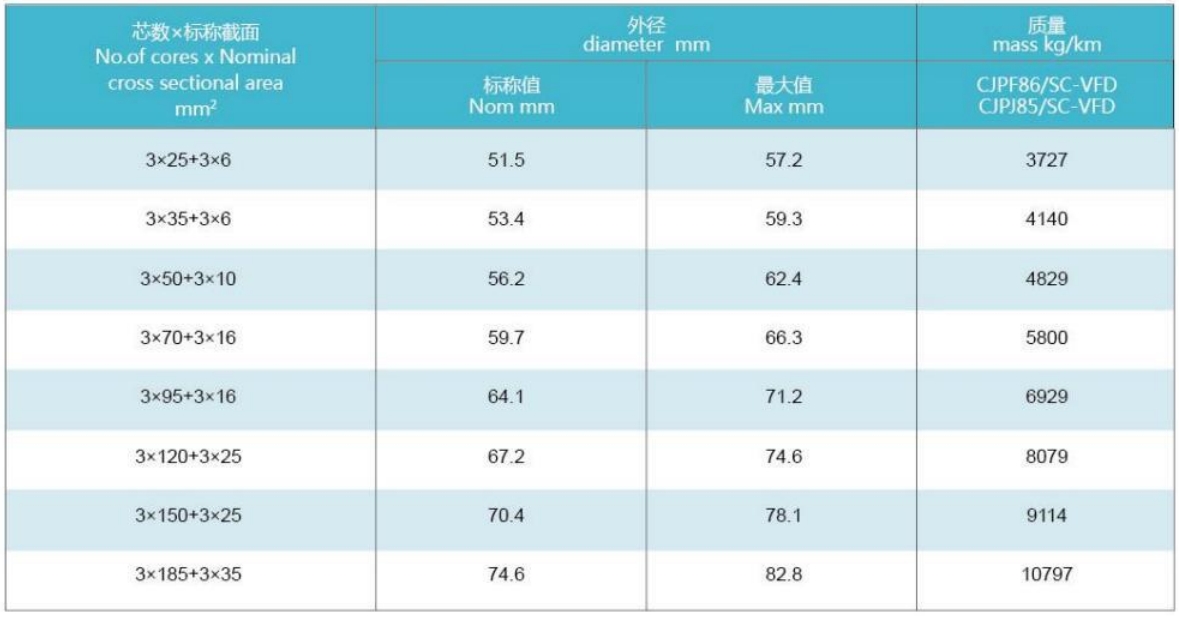

交联聚乙烯绝缘阻燃船用中压变频电力电缆 3.6/6kv 90℃

XLPE Insulated Flame Retardant Shipboard Medium Voltage VFD Power Cables 3.6/6kV 90°C

CJPF86/SC-VFD,CJPJ85/SC-VFD

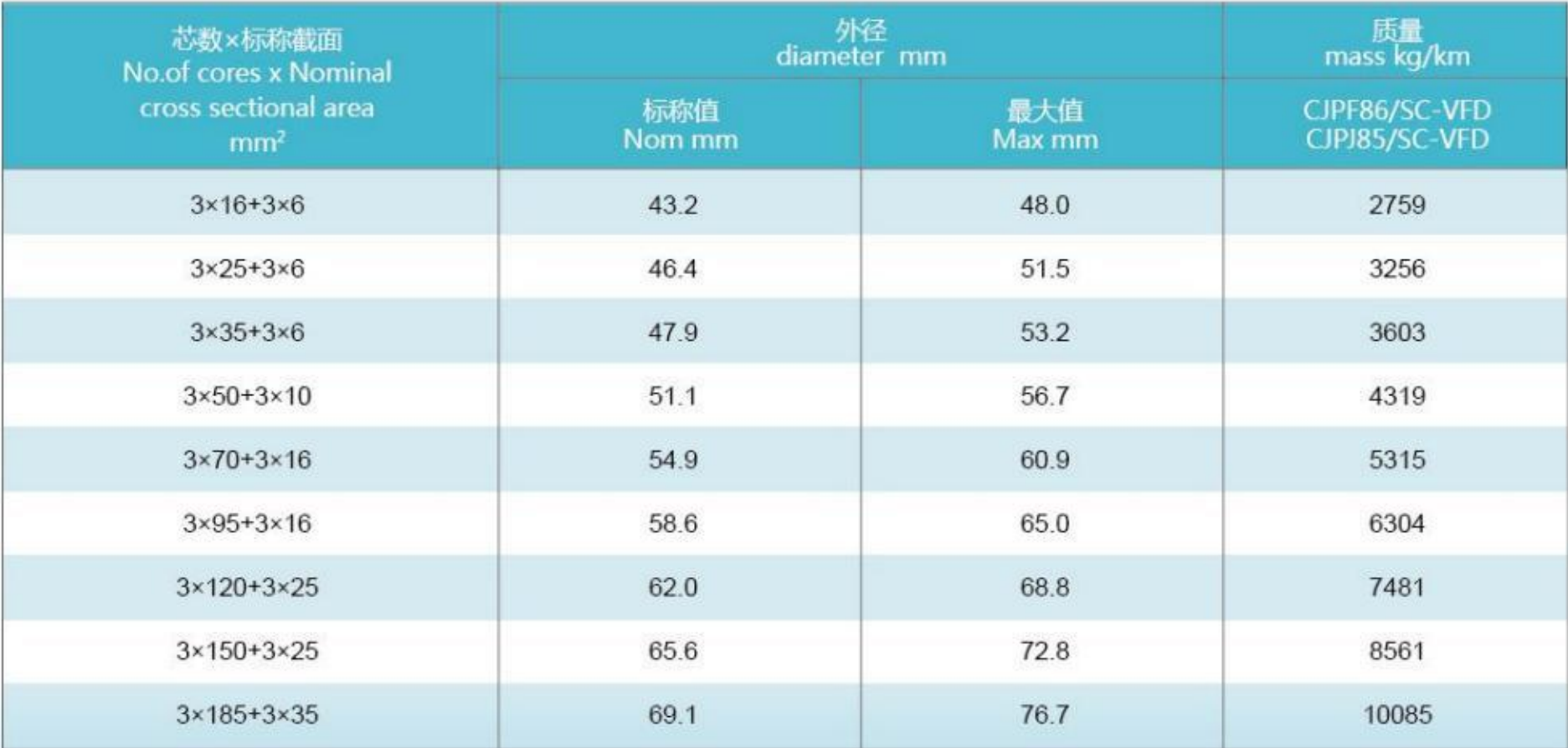

交联聚乙烯绝缘阻燃船用中压变频电力电缆8.7/15kv 90℃

XLPE Insulated Flame Retardant Shipboard Medium Voltage VFD Power Cables 8.7/15kV 90°C

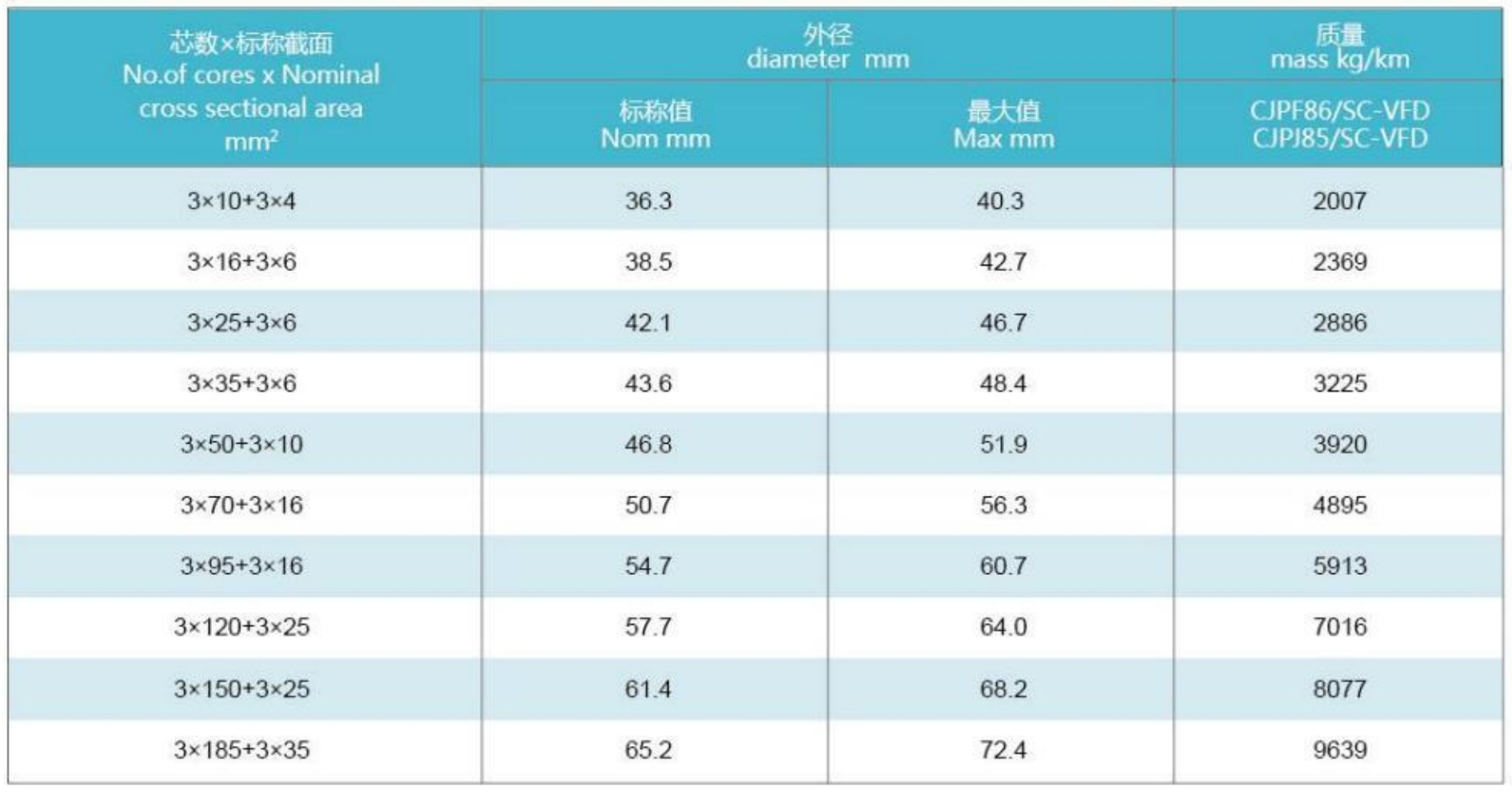

交联聚乙烯绝缘阻燃船用中压变频电力电缆 6/10kv 90℃

XLPE Insulated Flame Retardant Shipboard Medium Voltage VFD Power Cables 6/10kV 90°C

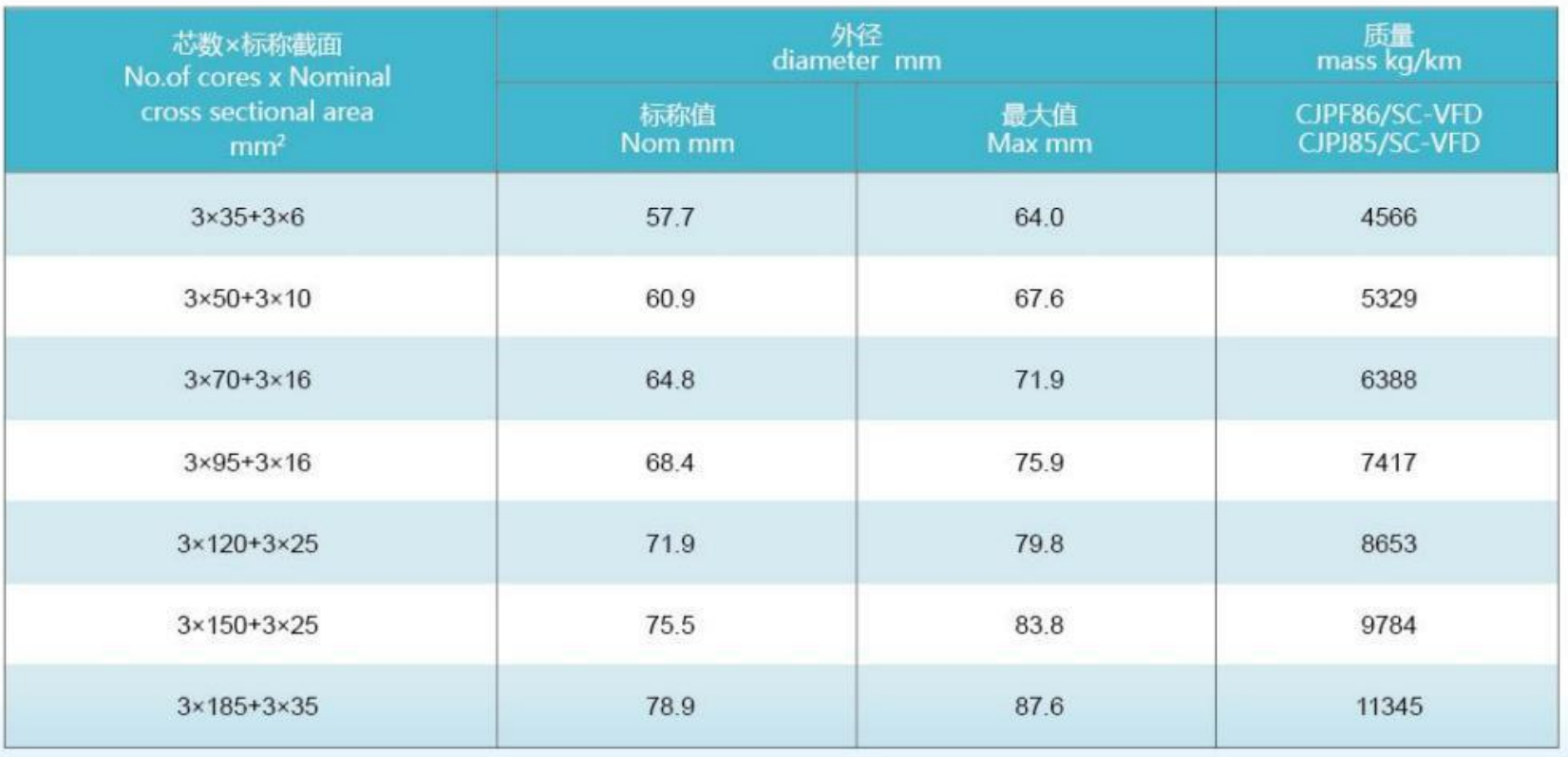

交联聚乙烯绝缘阻燃船用中压变频电力电缆 12/20kV 90℃

XLPE Insulated Flame Retardant Shipboard Medium Voltage VFD Power Cables 12/20kV 90°c
